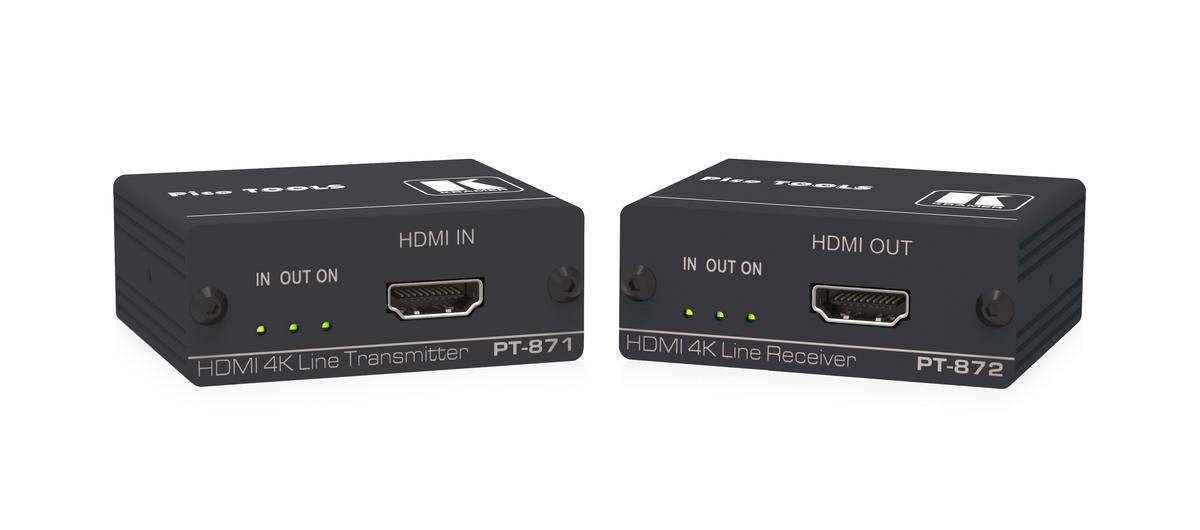

4K60 4:4:4 HDMI Over DGKat 2.0 Twisted Pair Extender Kit
Model:
PT-871/2-KIT
Part #:
50-8038490
- High performance extender - professional DGKat™ 2.0 extender kit for providing long-reach signals and 2-way power over twisted pair copper infrastructures
- Employs low-level video compression technology that delivers visually lossless performance for 4K60 4:4:4 and HDR signals with near-zero latency
- Converts input HDMI signal into the transmitted DGKat™ 2.0 signal
- Converts the transmitted DGKat™ 2.0 signal into an HDMI signal
- Extend video signals to up to 40m (130ft) over Kramer CAT copper cables at up to 4K at 60Hz (4:4:4) 24bpp video resolution
Project List
Product Info
Tech Specs
Related Products
Documents
Videos
The PT-871/2-KIT is a high-performance, long-reach DGKat™ 2.0 extender kit for 4K at 60Hz (4:4:4) HDR HDMI 2.0 and HDCP 2.2 signals and 2-way powering over twisted pair. The PT-871 transmitter converts all input signals into the DGKat™ 2.0 signal. The PT-872 receiver converts the transmitted DGKat™ 2.0 signal into an HDMI signal. PT-871/2-KIT extends video signals to up to 40m (130ft) over Kramer CAT copper cables at up to 4K at 60Hz (4:4:4) 24bpp video resolution.
- High performance extender - professional DGKat™ 2.0 extender kit for providing long-reach signals and 2-way power over twisted pair copper infrastructures
- Employs low-level video compression technology that delivers visually lossless performance for 4K60 4:4:4 and HDR signals with near-zero latency
- Converts input HDMI signal into the transmitted DGKat™ 2.0 signal
- Converts the transmitted DGKat™ 2.0 signal into an HDMI signal
- Extend video signals to up to 40m (130ft) over Kramer CAT copper cables at up to 4K at 60Hz (4:4:4) 24bpp video resolution
- HDMI signal extension - HDR, HDMI 2.0 and HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D
- EDID signals are passed through from the source to the display
- I-EDIDPro™ Kramer intelligent EDID processing™ - intelligent EDID handling, processing and pass-through algorithm that ensures plug and play operation for HDMI source and display systems
- Multi-channel audio extension - up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
- Cost-effective maintenance - status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local maintenance and troubleshooting
- Easy installation - single twisted-pair cable for signal and power wiring
- Compact Pico TOOLS™ fan-less enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1U rack space with the optional RK-4PT rack adapter
- Applications:
- Long-distance AV signal extension for large room connectivity
- AV extension in meeting rooms, boardrooms, hotels and corporate facilities
- Depth : 51.82 mm
- Depth : 2.04 in
- Height : 24.38 mm
- Height : 0.96 in
- Width : 62.23 mm
- Width : 2.45 in
- Shipping Weight : 0.36 kg
- Shipping Weight : 0.80 lbs
- Regulatory Compliance : HDCP
- DC Voltage : 12 Volts
- Video :
•Maximum Resolution: 3840x2160 at 60Hz (4:4:4) 24bpp
•Data Bandwidth: Up to 18Gbps (6Gbps per graphic channel)
•Standards Compliance: HDR10, HDMI 2.0, HDCP 2.2 - Product Weight : 0.09 kg
- Product Weight : 0.20 lbs
- Rack Units (Height) : 1
- Transmission Range : 3962.40 cm
- Transmission Range : 130 ft
- Operating Temperature (Maximum) : 40 C
- Operating Temperature (Maximum) : 104 F
- Operating Temperature (Minimum) : 0 C
- Operating Temperature (Minimum) : 32 F
- Current Draw : 2 Amps
- Shipping Width (with packaging) : 156.97 mm
- Shipping Width (with packaging) : 6.18 in
- Shipping Height (with packaging) : 87.12 mm
- Shipping Height (with packaging) : 3.43 in
- Shipping Depth (with packaging) : 119.63 mm
- Shipping Depth (with packaging) : 4.71 in
- Inputs :
•1 HDMI: On an HDMI female connector (PT-871)
•1 DGKat: On an RJ-45 female connector for extension line (PT-872) - Outputs :
•1 DGKat: On an RJ-45 female connector for extension line (PT-871)
•1 HDMI: On an HDMI female connector (PT-872) - User Interface :
•Indicator LEDs: In, Out, On - Enclosure :
•Size: Pico Tools
•Type: Aluminium
•Cooling: Convection ventilation - Extension Line :
•Reach Extension: Up to 40m (130ft) at 4K at 60Hz (4:4:4 or 4:2:0) or full HD (1080p at 60Hz 36bpp)
•Note: When using Kramer UNIKAT cables
•Signal Compression: Low-level compression is applied to line-transmitted signals of above 1080p resolution
•Compliance: DGKat 2.0
