AVB/TSN Enabled Video Decoder

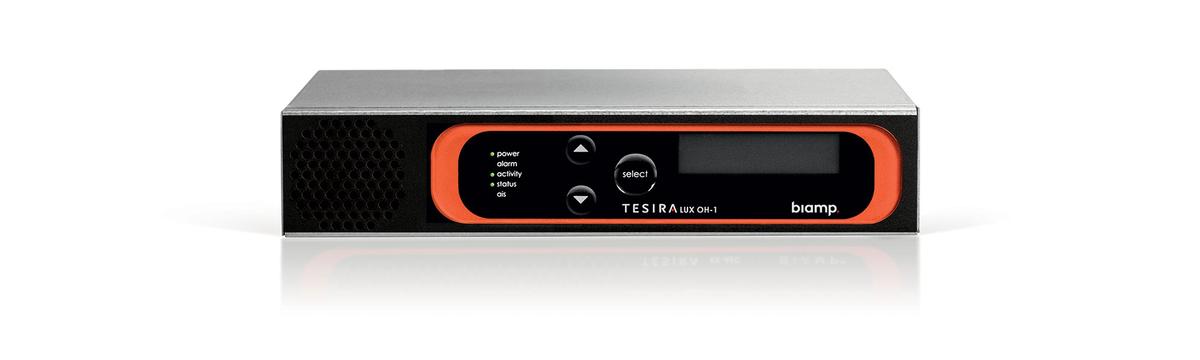

Model: TesiraLUX OH-I
  • Includes one HDMI 2.0 port
  • Outputs video signals up to and including 4K60
  • Supports a virtual matrix of up to 128 Tesira devices
  • Flexible color space including Rec. 2020
  • Supports High Dynamic Range (HDR)
Project List
Product Info
Tech Specs
Documents
Videos
The TesiraLUX OH-1 is an AVB/TSN enabled video decoder capable of outputting video signals up to and including 4K60. The OH-1 functions as a server-class device in a Tesira media system and is configured through the Tesira software. Acting as an AVB listener, the OH-1 fully integrates digital audio and video on a single network, allowing for simplified lip sync management and transmission latencies (including scaling) of less than 2 frames. Integrated design, configuration, and control is facilitated via a single software platform, reducing the design time needed to deploy media systems. The AVB/TSN signal reception can be over 1Gb or 10Gb ports while control signals are managed via a separate 1Gb Ethernet port. The OH-1 accepts 8 channels of PCM audio for embedding/de-embedding, and includes 2 mic/line level analog outputs. The TesiraLUX OH-1 is well suited for legal proceedings, lecture halls, multi-use spaces and other applications where low latency, synchronized media distribution is needed.
  • Includes one HDMI 2.0 port
  • Outputs video signals up to and including 4K60
  • Supports a virtual matrix of up to 128 Tesira devices
  • Flexible color space including Rec. 2020
  • Supports High Dynamic Range (HDR)
  • Integrated lip sync management
  • Supports 8 channel PCM audio for embedding/deembedding
  • Video wall capable
  • Automated EDID management between TesiraLUX and the output display
  • 2 Mic/line level analog audio outputs
  • 4 Logic connections can be used as inputs or outputs
  • Serial port for the output of command strings
  • Half-rack chassis
