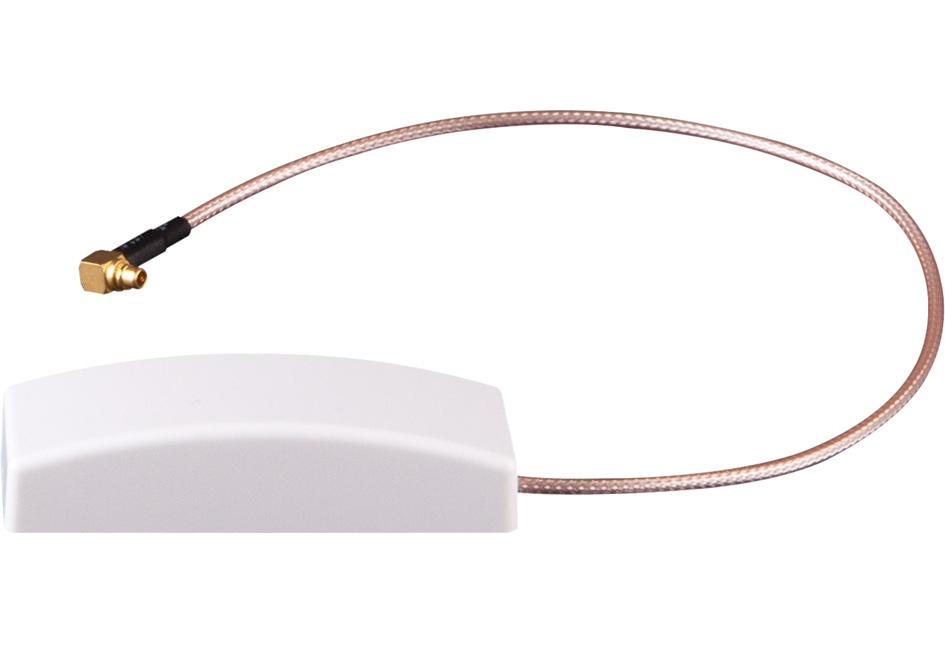

External Antenna for CSM-QMT50-DCEX Shade Motors, White

Model: CSA-ANT-EXTRNL-QMT50-W
  • Plastic, surface mountable enclosure
  • 8-inch (204mm) Cable
  • Suitable for CSM-QMT50-DCEX shade motors
Project List
Product Info
Tech Specs
Documents

Provides a solution for increasing wireless signal strength for Crestron® CSM-QMT50-DCEX QMT™ Shade Motors, especially when recessed mounted in a pocket.

The Crestron® CSA-ANT-EXTRNL-QMT50 provides a solution for increasing wireless signal strength for Crestron CSM-QMT50-DCEX QMT™ Shade Motors featuring infiNET EX® wireless technology. The external antenna is recommended for applications where the shade is recess mounted in a pocket, or anywhere the integrity of the wireless signal may be compromised by some obstruction or excess distance.

The CSA-ANT-EXTRNL-QMT50 comes in white (model: CSA-ANT-EXTRNL-QMT50-W) and can be painted to blend with the surrounding decor for an inconspicuous installation. It is designed for mounting to a flat surface outside of the pocket in which the shade is installed, or near the opening at the bottom of the pocket. It includes an integral 8 inch (204 mm) wire lead with right-angle coaxial connector for connection to the shade motor.

  • Plastic, surface mountable enclosure
  • 8-inch (204mm) Cable
  • Suitable for CSM-QMT50-DCEX shade motors
