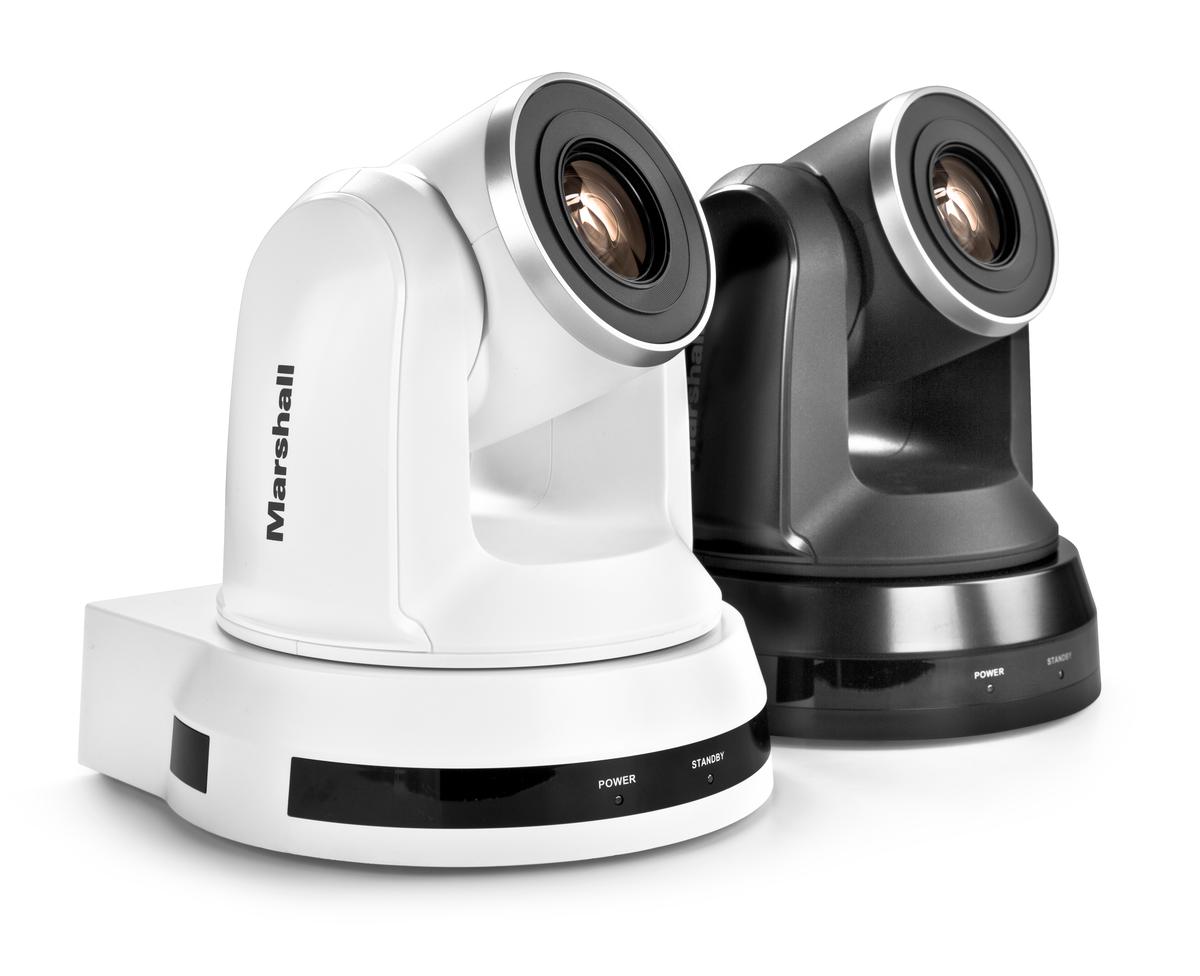

2MP HD PTZ Camera with 3G/HD-SDI, DVI and HDMI Outputs, White

Model: CV620-WH2
  • 2 Megapixel 1/2.8-inch HD sensor
  • 1920x1080i, 1920x1080p, 1280x720p Full HD resolution
  • High Speed 60, 59.94, 50, 30, 29.97, 25fps
  • 20X Optical zoom 4.7 to 94mm (F1.6 to 3.5) with 12x digital
  • 340° Horizontal pan and 120° Vertical tilt
Project List
Product Info
Tech Specs
Related Products
Documents

Marshall Electronics' Broadcast Pro AV High-Definition PTZ Camera is built around a professional-grade, 2-Megapixel 1/2.8-inch sensor, with a smooth 20x optical zoom (4.7 to 94mm) block. The camera can be controlled remotely via RS-232 over Ethernet cable, or RS-422 over twisted pair, and uses common protocols to make it compatible with most integrated control systems. It has versatile outputs such as HD-SDI (3G) and HDMI (DVI), and includes a number of broadcast adjustable settings such as white balance, exposure, iris, gamma, black level, and more for tremendous flexibility of use.

  • 2 Megapixel 1/2.8-inch HD sensor
  • 1920x1080i, 1920x1080p, 1280x720p Full HD resolution
  • High Speed 60, 59.94, 50, 30, 29.97, 25fps
  • 20X Optical zoom 4.7 to 94mm (F1.6 to 3.5) with 12x digital
  • 340° Horizontal pan and 120° Vertical tilt
  • Quiet, smooth, stable pan, tilt, zoom motor allows for quality transitions
  • Simultaneous 4D control for pan, tilt, zoom, and focus
  • Variable transition speeds - 5 to 300° per second with optional motionless transition
  • HD-SDI/3G-SDI (BNC) and DVI video outputs
  • RS232/RS422 remote control interface at high comm speeds
  • Mountable via table, wall, ceiling mounts included with flip-able images
  • Compatible with most integrated video management systems
  • Applications:
  • Broadcast multimedia
  • Teleconference
  • Corporate boardroom
  • House of worship
  • Courtroom
  • Healthcare
  • Government
  • Concert and studio music video
