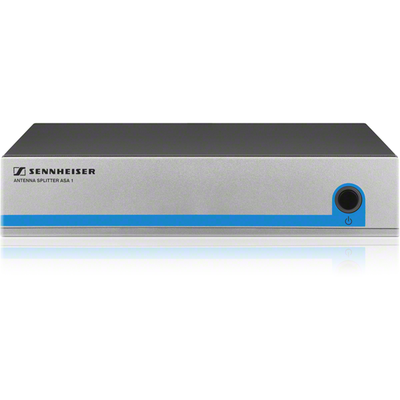

Active Antenna Splitter

Model: ASA 1
  • Designed to enable routing of UHF antenna signals to several receivers in a multi-channel system
  • Up to four diversity receivers may be supplied with signal by only two antennas
  • Loss-free operation of multi-channel G3 wireless systems
  • Cascading enables the operation of up to 8-channels of wireless through two antennas
  • Power is supplied to the connected ew G3 receivers through the BNC antenna cables
Project List
Product Info
Tech Specs
Related Products
Documents
The ASA 1 active antenna splitter has been designed to enable routing of UHF antenna signals to several receivers in a multi-channel system. Up to four diversity receivers may be supplied with signal by only two antennas. The integral RF amplifiers ensure that the ASA 1 does not introduce any additional UHF signal loss. The ASA 1 incorporates DC distribution to enable simultaneous powering of up to four receivers and two antenna boosters via its BNC sockets. The antenna boosters may be required in order to compensate for cable losses due to long antenna cables. A single NT 1-1 mains unit (to be ordered separately) is required to power the ASA 1, the connected receivers and antenna boosters. 3y linking two ASA 1, an 8-channel diversity system can be operated with only two antennas. Using the GA 3 rack adapter, two ASA 1 or one ASA 1 and one stationary receiver can be mounted into a 19" rack. The ASA 1 is suitable for multi-channel RF installations and permanent installations in small conference centers and similar venues.
  • Designed to enable routing of UHF antenna signals to several receivers in a multi-channel system
  • Up to four diversity receivers may be supplied with signal by only two antennas
  • Loss-free operation of multi-channel G3 wireless systems
  • Cascading enables the operation of up to 8-channels of wireless through two antennas
  • Power is supplied to the connected ew G3 receivers through the BNC antenna cables
  • Single NT 1-1 mains power unit
  • Suitable for multi-channel RF installations and permanent installations in small conference centers and similar venues
